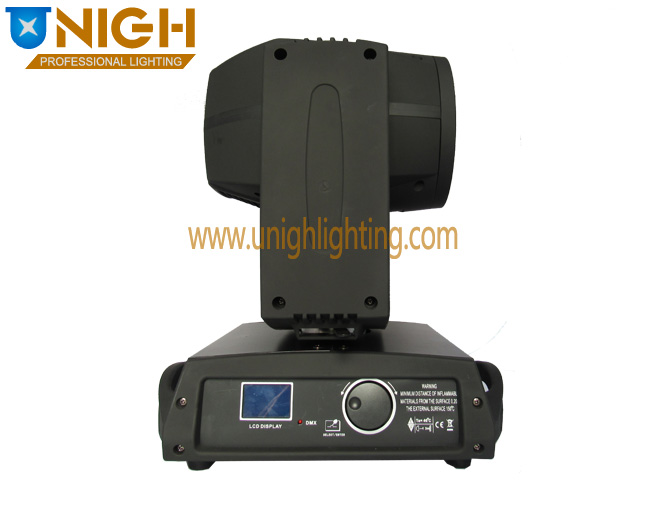

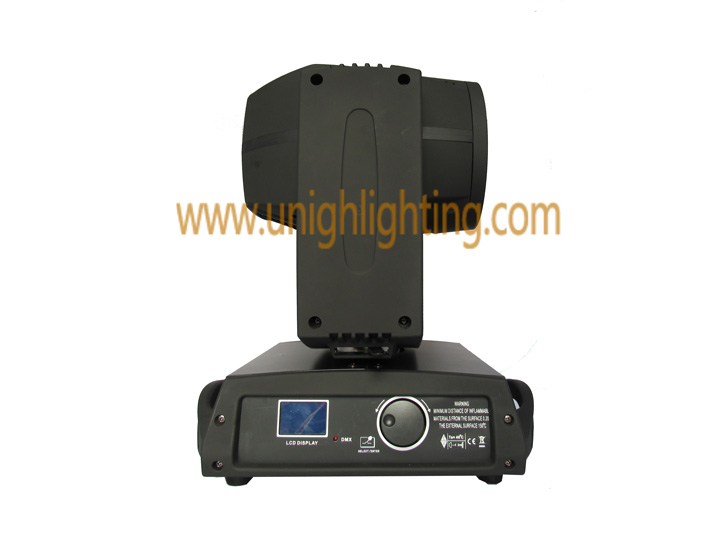

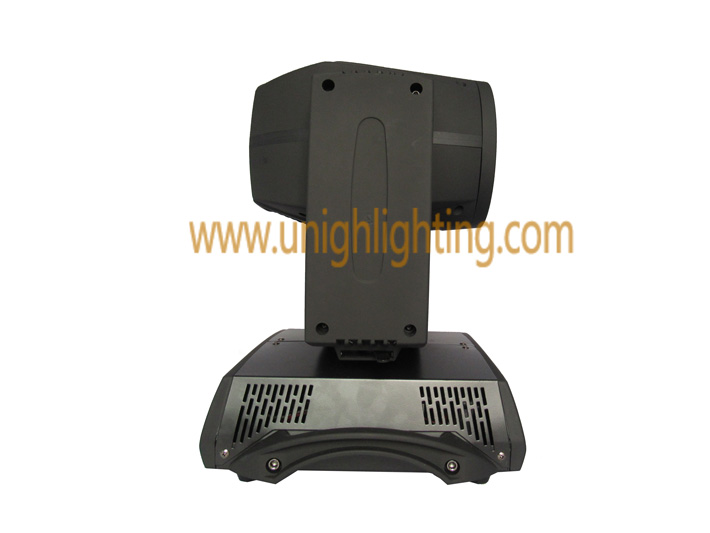

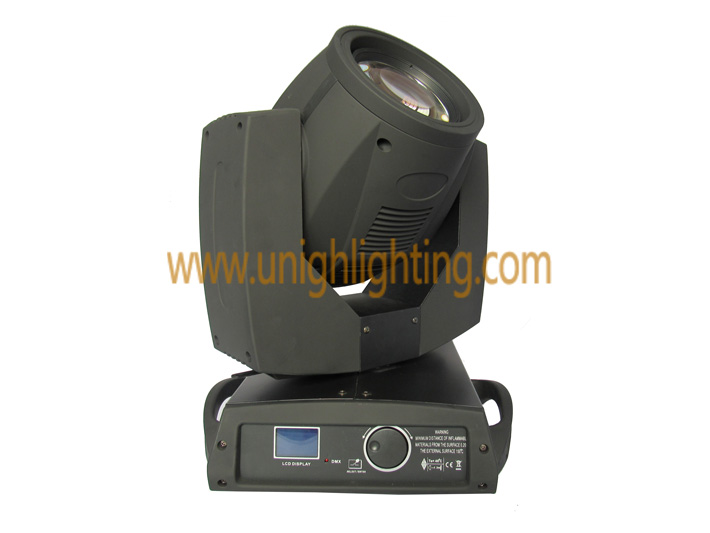

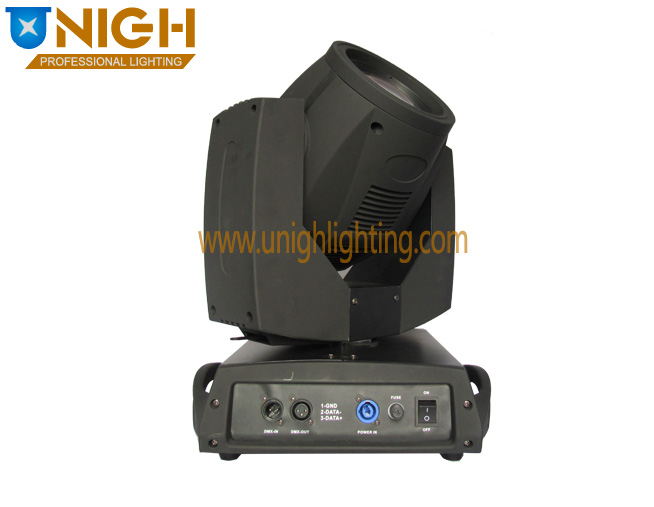

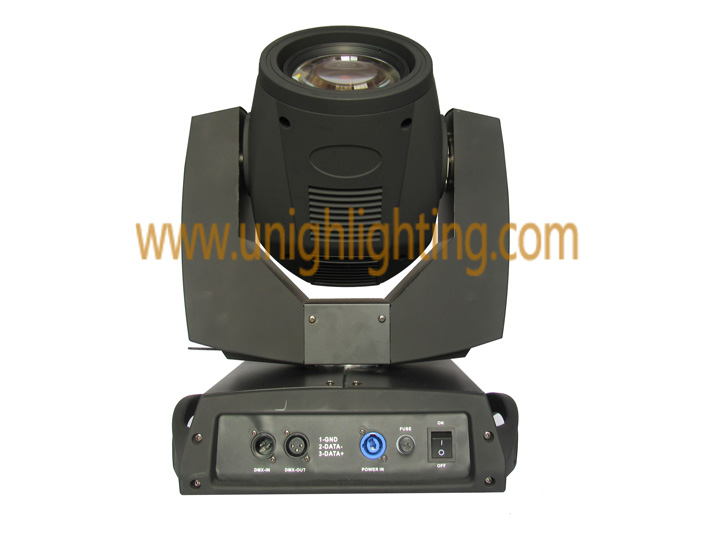

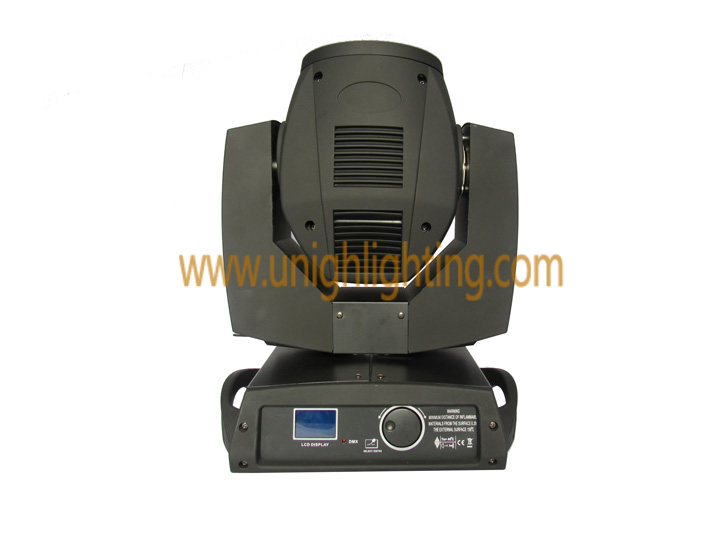

230w 7R super beam moving UL-7R230W
1 Philips 7R 230w
2 17 fixed gobos+white
3 14 colors+white
4 16/20CH
Specification
DMX Channel
Video

Model

UL-7R230W

Voltage

AC 90-240v, 50/60Hz

Power consumption

380w

Source

Lamp

Philips 7230w

Output Lumen

110000lm@10meters

Color temperature

8500K

Average lifespan

2000h

Mechanical

Gobo wheel

17 fixed gobos+white

Double rotation with rainbow effect

Gobo shaking function

Color wheel

14 colors+white

Double rotation with rainbow effect

Prism

8 facet prism with zoom

Double rotating prism

Dimmer

0-100% linear dimming

Frost lens

wash effect

Strobe rate

1-18Hz

Focus

linear adjustment

Motor

11 pcs

Fans

ADDA

Optical

Lens

High precision optics lens

Beam angle

Parrallel beam 0-3.8 degree

Movement range

Pan

540 (16 bit) electric correction

Tilt

270 (16 bit) electric correction

Control & program

Control mode

DMX 512, master slave, sound active,auto mode

Channel

16/20CH

Data in/out

3 pin XLR

Other functions

Lamp ON / OFF can be controlled by controller

Pre-set macros

Display

LCD screen

Packing details

Dimension

430*350*490mm

N.W.

16.5kg

Carton

450*400*510mm

19kg
