1200W LED frame beam spot wash
1.Big power 800/1000/1200/1400w
2.beam spot wash profile
3.CMT CTO
Specification
DMX Channel
Video

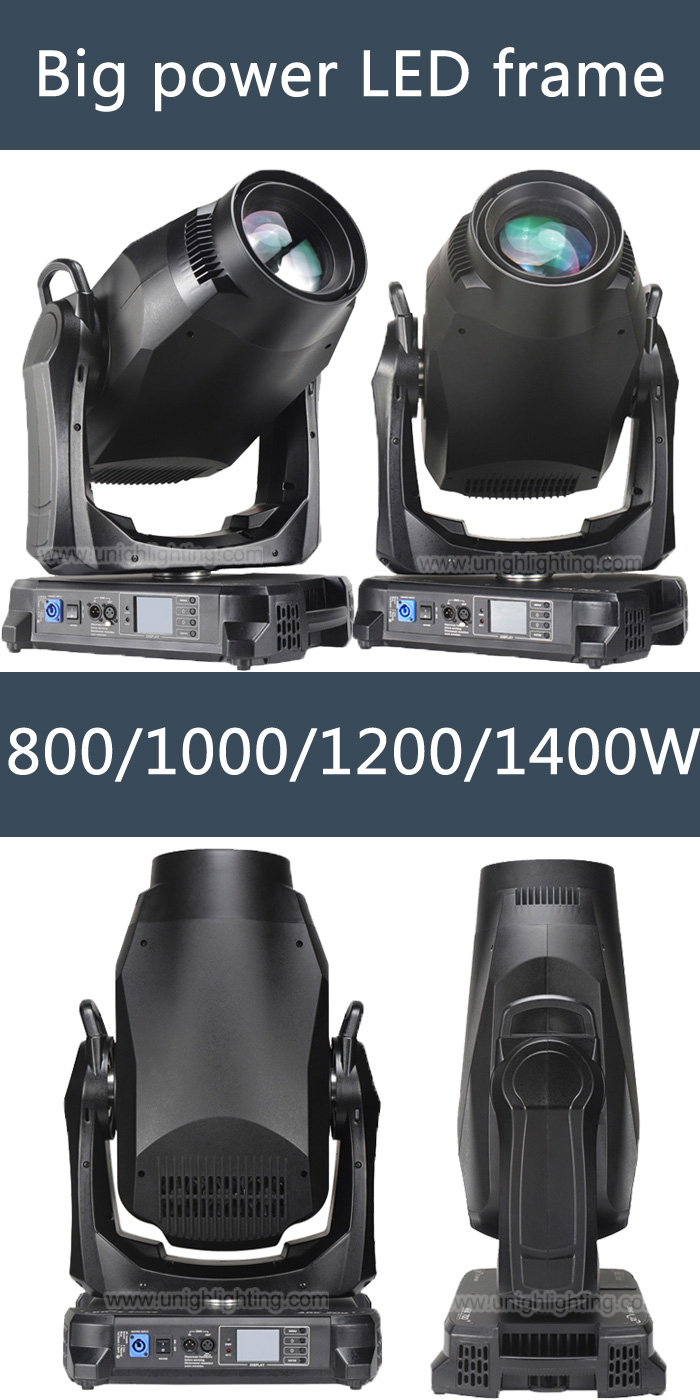

800W 1000W 1200W 1400W LED frame beam spot wash moving head light


Rated voltage: AC100-240V, 50/60Hz
Power: 1350W
Light source: 1200W LED module
Light Source: 20000 hours
Color temperature: 6500K
Correction: Using high -precision glass lens, 5.5 ° ~ 50 ° linear high -speed zoom, any range of light spots is evenly consistent
A comprehensive graphic cutting system can generate geometric graphics of different sizes and shapes. The graphic can be rotated at 0 ° -90 °.
Rotating pattern: 1 rotating pattern has 6 patterns/7 patterns to choose from, can be transmitted jitter and two -way rotation. The pattern rotation has 16bit accuracy and fine -tuning.
Fixed pattern: 1 fixed pattern plate has 8 patterns/plug -in options, can be transformed jitter and two -way rotation.
Effective disk: 1 dynamic effect disk, which can simulate dynamic effects such as flames, flowing water.
Color plate: 1 color plate has 7 color pieces, which can achieve two -way rainbow effect, half and linear adjustment.
C M Y: Wuji Mixed Color
C T O: Linear color temperature adjustment
Light circle: 5-100%linear adjustment, with a variety of macro functional effects
Frequency flash: 1-25Hz fast electronic flashing per second, with pulse flashing, synchronous asynchronous flash effect
Lighting: 0-100% linear lighting
Prism: 1 prism, 1 four -row mirror, can rotate in two -way transmission
atomization: 1 independent atomizer mirror
Xianxian: Gao Xian refers to: RA ≥ 93 R9≥93 / Low Den

Show: Color 2.8 -inch touch display, Chinese and English can be switched at will
Flat: Horizontal angle 540 ° (16bit precision fine -tuning), can be automatically corrected
Vertical: Vertical angle 270 ° (16bit precision fine -tuning), can be automatically corrected
Control mode: DMX512, RDM, self -walking, voice control, scene, main slave mode, optional wireless transmission
Control channel: 41 channel


Protection level: IP20
