K20 37x15W LED bee eye moving head
1.1:1 DMX channels
2. 37x15w RGBW 4IN1
DMX Channel

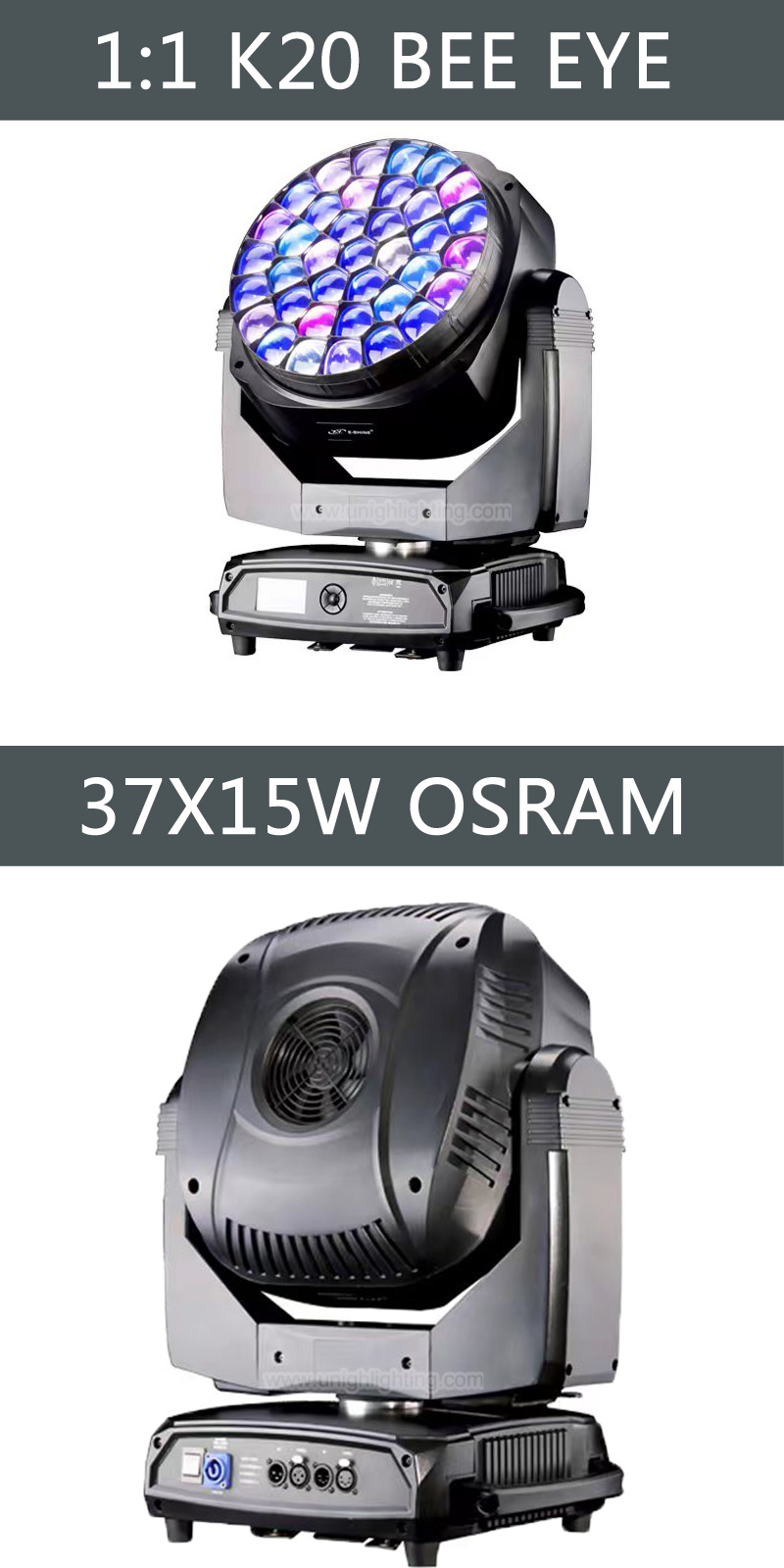

K20 37X15W LED bee eye moving head

Rated voltage: AC110-240V, 50/60Hz
Power: 750W
Light source: LED 37*15W RGBW four -in -one
Light Source: 50,000 hours
Angle: 4 ° -60 ° Electronic Zooming range
3 effect mode: digital laundering wall, beam, FX (kaleidoscope effect)
Two -way rotation front lens
Beam softening control
The macro instructions of the pixel pattern can enhance the control effect
0-100% linear electronic lighting
Speed can stop/frequent flash effect, instantaneous lamp
Special color temperature channel, white CT simulation 2500-8000K, RGBW automatic adjustment to light CT simulation
Simulation tungsten filament bulb
Slow Flash: 1 Flash/second; High -speed Flash: 25 flash/second
Control and programming:
Control mode: DMX512 and RDM control, which can support the Ethernet interface
Control channel: 21/35/132/169 channel
Show: color 2.8 -inch display, Chinese and English can be switched at will
Horizontal/vertical resolution: 16 bits, dimming resolution: 16 bits
Movement control: vector
DMX signal connection: 3 and 5 stitches XLR input and output
Cast cast aluminum+plastic cover
Move the motor through three -phase steps:
When accidental motion occurs, the horizontal and vertical can be automatically retrieved.
level: 540 ° vertical: 270 °
Optional long -life battery, automatic charging
Macro instructions of preset color and graphic effect
The reset function can be controlled by a central controller
The built -in self -inspection function of the menu driver
Electronic check each parameter to form a parameter error alert
DMX horizontal monitoring all over each channel
Automatic internal data transmission diagnosis error
Net weight: 22kg
