Netdo pro 512 /max512 /max384 console
1 Netdo Super Pro 512 console
2 Netdo Max512 console
3 Netdo Max384 console
2 Netdo Max512 console
3 Netdo Max384 console
Specification
DMX Channel
Video

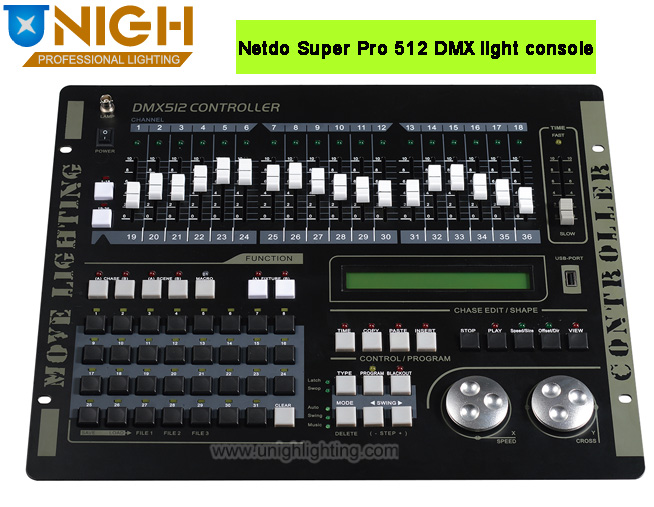

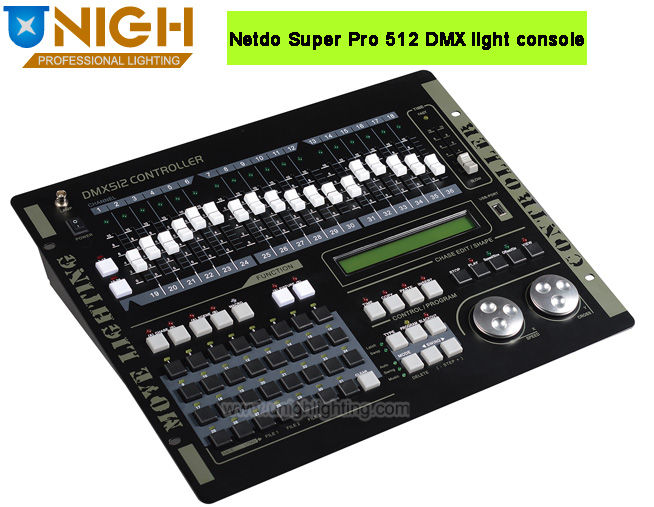

Netdo Super Pro 512 console＆#160;
SuperPro512＆#160; MOVING LIGHT CONTROLLER
DMX512/1990 standard, 512 DMX channels, output with optical isolated.
Up to 62 intelligent Fixtures may be connected with a maximum of 36 channels each.
Uses can allocate DMX channel to each intelligent Fixture dynamically.
16-bit X/Y control for absolutely precise movement.
Up to 80 SHAPE generators. SHAPE track control is provided to control such effects as circles, lines and shapes like 8, etc.
62 Chases, up to 100 Steps each. Trigger mode selectable: Music synchronously, Auto, Manual speed
6 Chases, 62 Scenes operated at the same time. At most 62 intelligent Fixtures can be selected simultaneously.
31 MACRO, running combination of different manual, scene and chase can be recorded to the MACRO.
USB port is provided. each USB flask-disk can record the whole data of controller,
LCD display with backlight.
Power supply: AC 90-250V / 50-60Hz
Size: 483mm x 400mm x 105mm

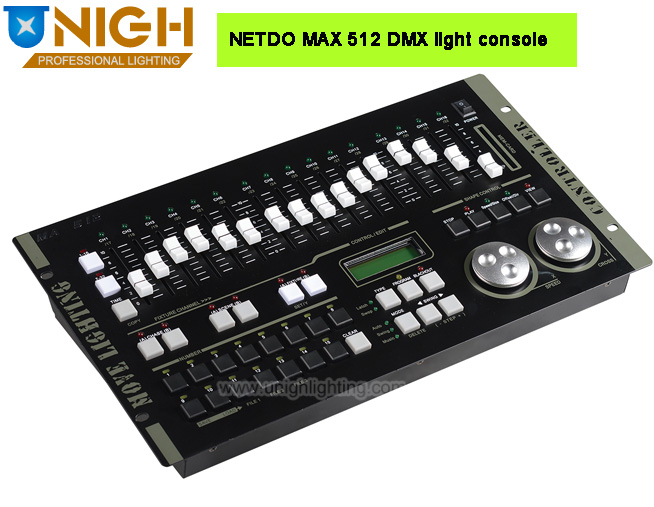

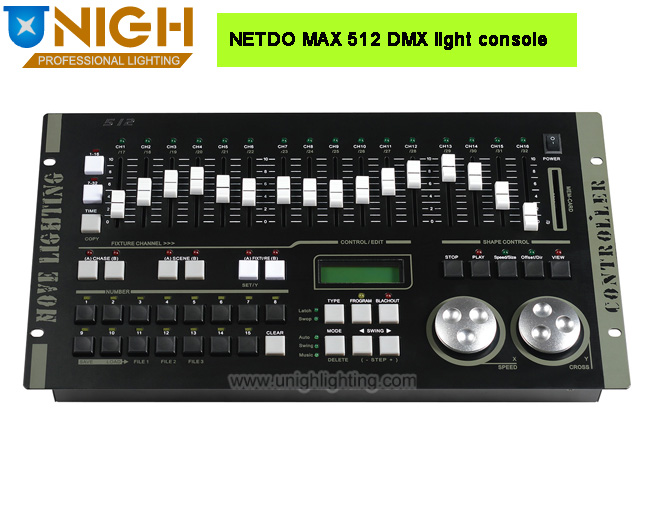

Netdo Max512 DMX lighting console
DMX512/1990 standard, 512 DMX channels, output with optical isolated.
Up to 30 intelligent Fixtures may be connected with a maximum of 32 channels each.
Uses can allocate DMX channel to each intelligent Fixture dynamically.
The X/Y channel of different intelligent Fixtures can be controlled by modulation Wheel.
Up to 50 SHAPE generators. SHAPE track control is provided to control such effects as circles, lines and shapes like 8, etc.
30 Chases, up to 100 Steps each. Trigger mode selectable: Music synchronously, Auto, Manual speed.
6 Chases, 30 Scenes operated at the same time. At most 30 intelligent Fixtures can be selected simultaneously.
Flash mem-card slot is provided. each Flash mem-card can record the whole data of controller,
LCD display with backlight.
Power supply: AC 90-250V / 50-60Hz11＆#160;
Size: 485mm x 267mm x 85mm

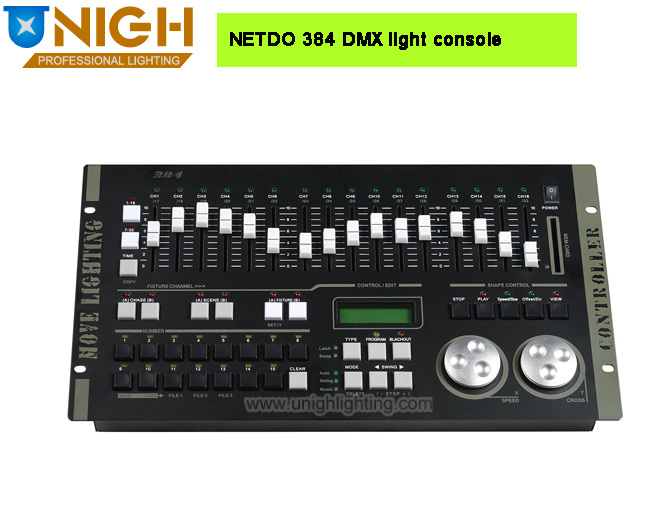

netdo MAX384 Dmx lighting console
DMX512/1990 standard, 384 DMX channels, output with optical isolated.
Up to 30 intelligent Fixtures may be connected with a maximum of 32 channels each.
Uses can allocate DMX channel to each intelligent Fixture dynamically.
The X/Y channel of different intelligent Fixtures can be controlled by modulation Wheel.
Up to 50 SHAPE generators. SHAPE track control is provided to control such effects as circles, lines and shapes like 8, etc.
30 Chases, up to 100 Steps each. Trigger mode selectable: Music synchronously, Auto, Manual speed.
2 Chases, 30 Scenes operated at the same time. At most 30 intelligent Fixtures can be selected simultaneously.
Flash mem-card slot is provided. each Flash mem-card can record the whole data of controller,
LCD display with backlight.
Power supply: AC 90-250V / 50-60Hz
Size: 485mm x 267mm x 85mm
