Netdo 1024 console
Netdo 1024 console
Specification
DMX Channel
Video

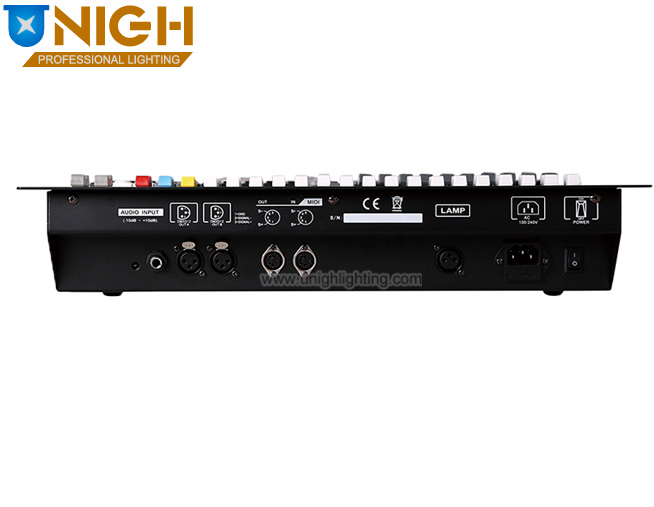

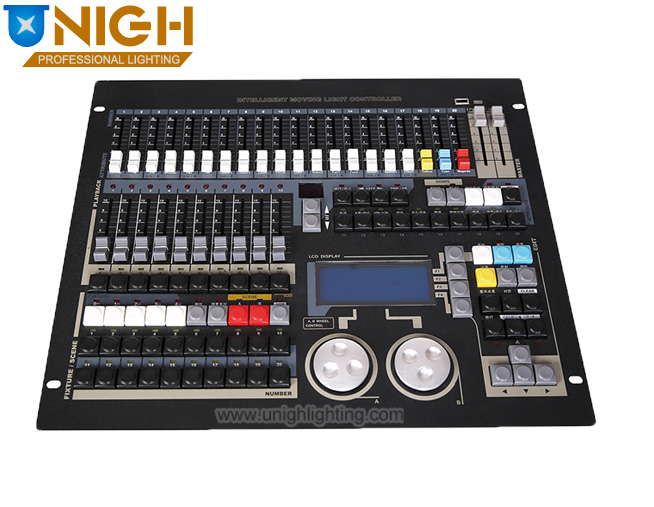

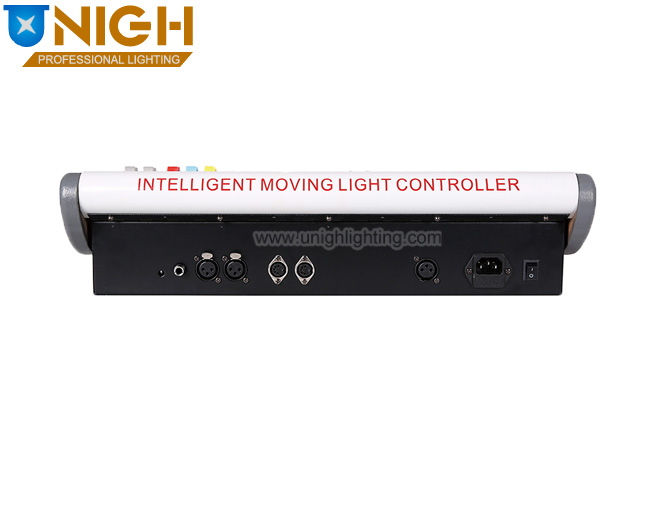

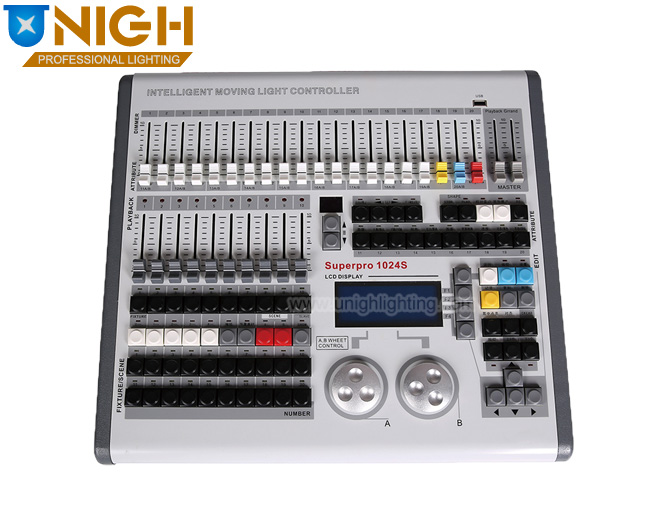

Netdo 1024 DMX lighting console controller
Maximum 1024 DMX control channels, DMX512/1990 standard, photoelectric isolation signal output port.
Maximum control of 100 computer lights or 100 dimming and LED lamps.
Each lamp has a maximum of 42 control channels, using the lamp library mode. (R20 Fixture Library)
With attribute channel push rod, it is convenient for users to control the lamps.
The maximum storage of 300 replay programs is divided into 30 pages.
With 40 directly selected scenes, which can be superimposed and output at the same time, and can be used for on-site special effects with replay, and can be controlled and locked.
With built-in graphics, it is convenient for users to control the effects of computer lights, such as circle, wave, aperture,
Various effects such as brightness change, support graphics superimposition, deformation, expansion and symmetry effects.
Program synchronization control: optional internal speed, external speed, music synchronization control.
Built-in 20 "light show" records, can realize one-key "light show" (internal time code, no PC computer).
With MIDI interface, it supports master/slave parallel operation. And support for external MIDI timecode triggering to achieve external "light show" performances.
Large-screen LCD display, using Chinese/English menu operation mode.
With USB data interface, support U disk data backup and system upgrade.
Professional gooseneck work light (optional).
Power supply: AC100-240V 50/60Hz 15W, high-performance green switching power supply, meeting the power requirements of countries all over the world.
