Martin Atomic LED 3000 Strobe
100% copy Mar tin Atomic LED 3000
can be suitable with Martins brand Atomic LED 3000 light library
can be suitable with Martins brand Atomic LED 3000 light library
Specification
DMX Channel
Video
Technical specifications:
With same Channel as Mar tin Atomic 30000 Strobe

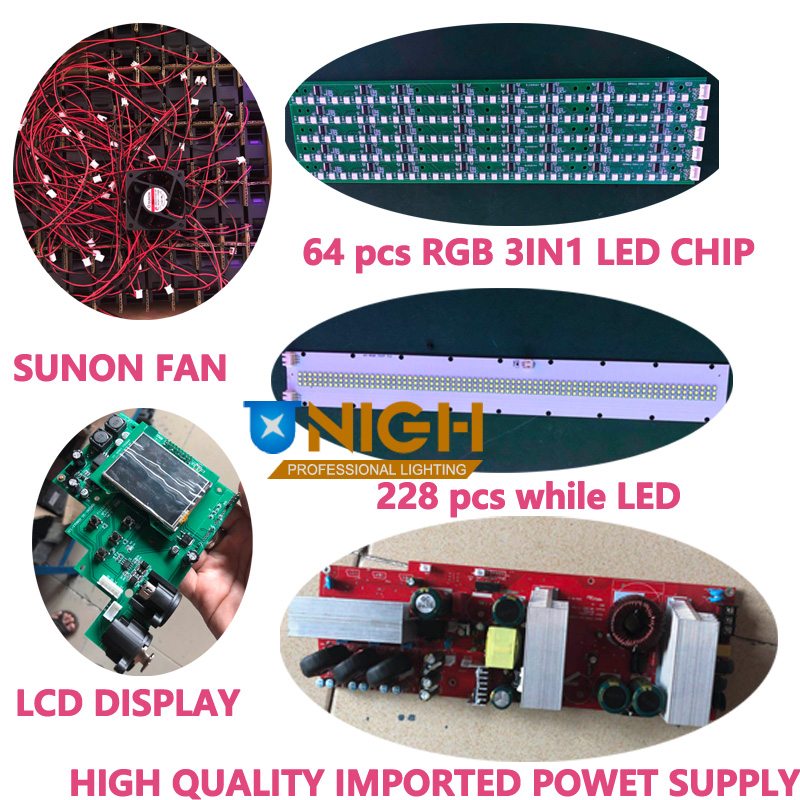

Light source: 228x3W white LEDs (Strobe ) 64x 0.6w RGB LEDs (backlight) array Minimum LED lifetime: 50 000 hours
Resolution:8 bits per color plus8-bit dimming Control systems: DMX
DMX channels: 3/4/14 Channels
Setting:Control panel with backlit monochrome display N.G: 7kgs /pcs
Packing Size: 50x 24x 34cm (1pcs /carton)
52x50x39cm (2pcs/carton)
The fixture has two LED arrays:
The Beam is a high-intensity array that gives powerful strobe and blinder effects
The Aura gives RGB effects that light up the front of the fixture to complement or contrast with the output from the Beam.
Strobe effects
The 3000 LED offers strobe effects from the Beam with variable flash rate, flash duration and intensity. It also offers the following pre-programmed effects:
Ramp up/down intensity modulation effects
Random flashes
Lightning – simulates the instantly recognizable ‘dirty’ flash of a lightning strike
Spikes – low-intensity light output with high-intensity flashes.
Blinder effects
To obtain a continuous blinder effect, set flash duration to a long ＆#118alue and flash rate to a high frequency ＆#118alue so that flashes ‘overlap’ and merge into continuous light output.

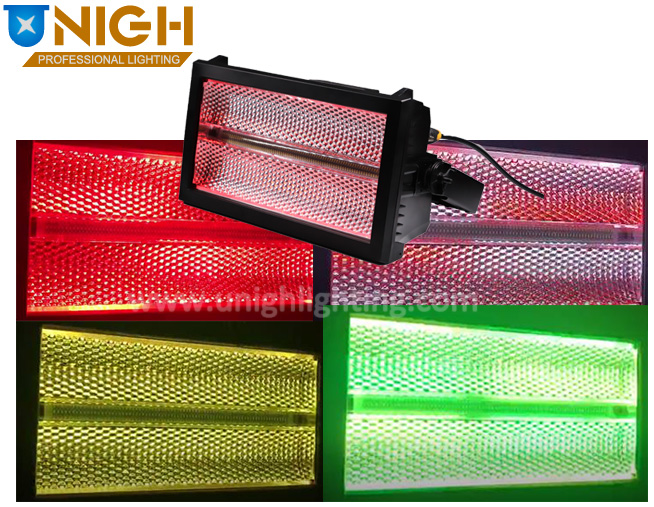

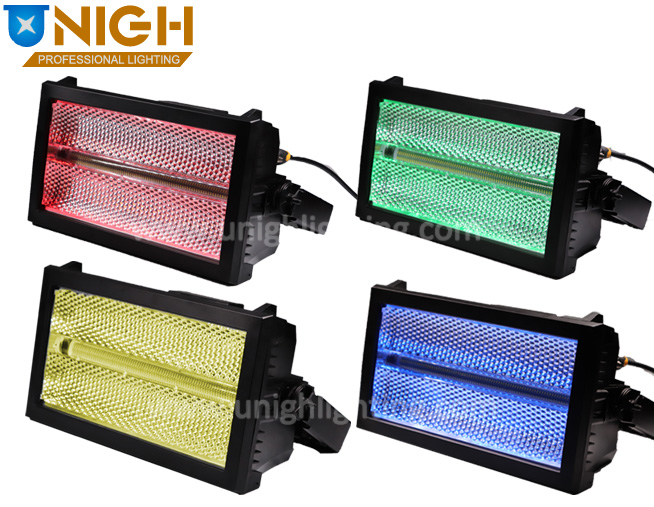

Aura RGB Color
Extended DMX mode gives control of the Aura. You can set Aura color with independent RGB control and you can also control overall Aura intensity.
The four different dimming curve options available in the fixture’s control menus apply to both the Beam and
the Aura dimming curves.
