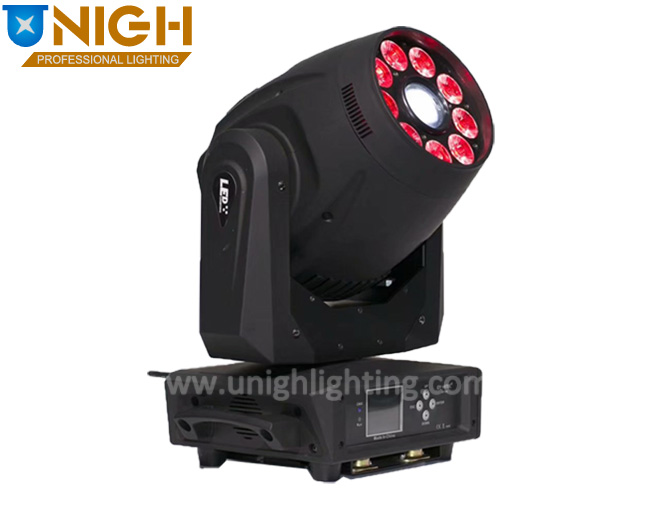

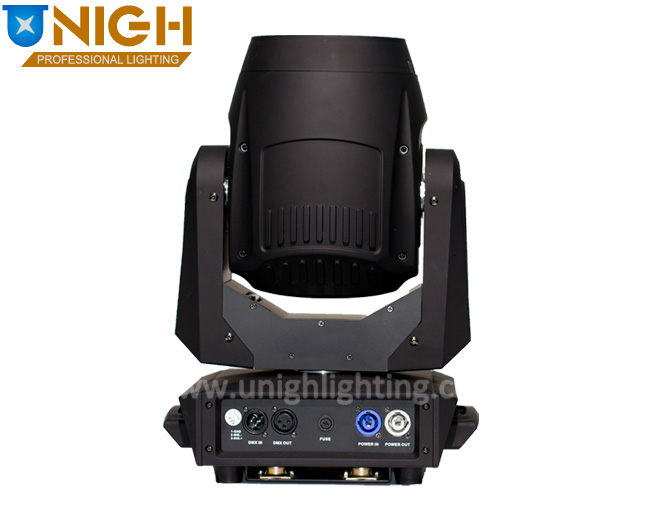

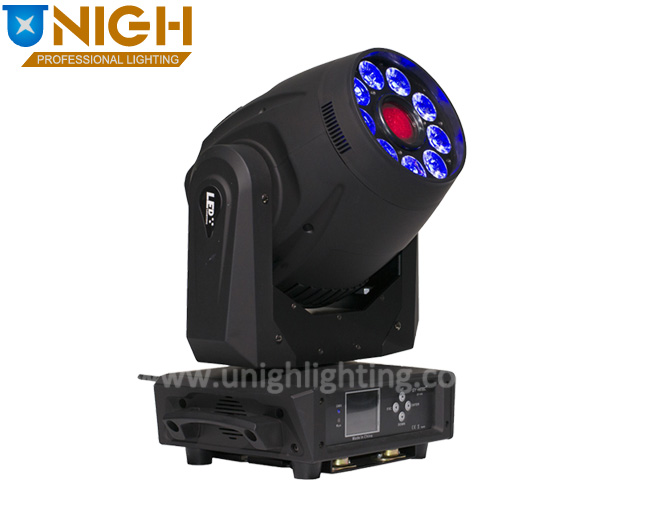

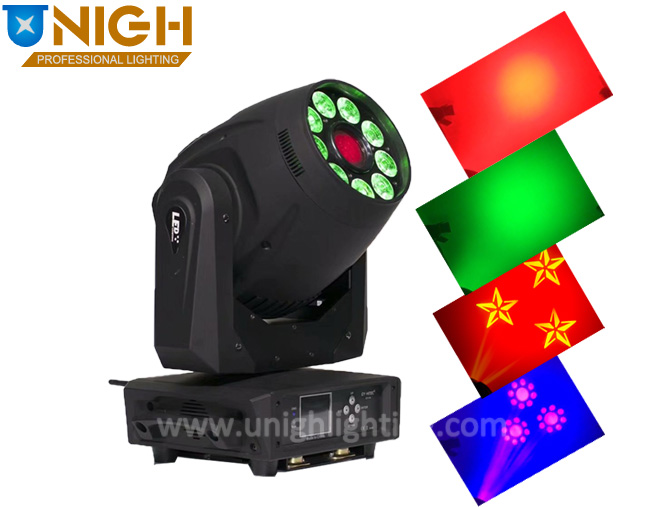

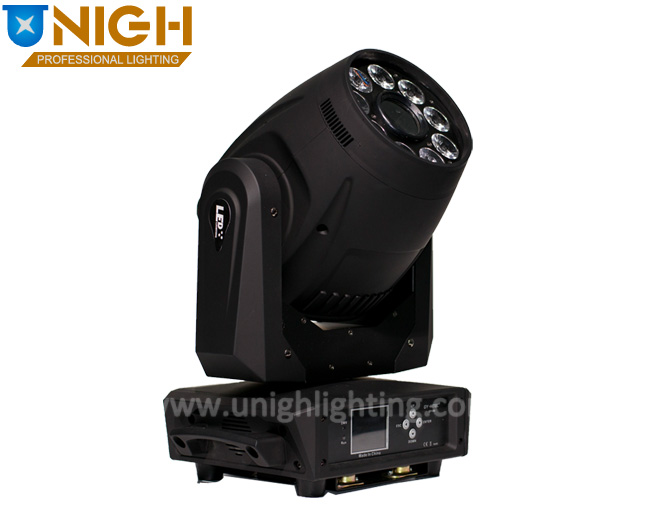

9 LED wash +120w LED spot moving

1:LED Source: 120W white + 9*12W RGBWA+UV 6in1 LEDs
2:Beam angle: 11°(spot)/25°(Wash)

Specification

DMX Channel

Video

POWER SUPPLIE

Input power:AC100-240V 50/60 Hz

Power consumption :245W

LED Source: 120W white + 9*12W RGBWA+UV 6in1 LEDs

Beam angle: 11°(spot)/25°(Wash)

Lamp life : 5000 hours lamp lifespan and low consumption

16/23 DMX channels

Color wheel: 7 colors+white

Gobo wheel: 7 gobos+open

Prism: 3 facet rotating prism

Focus: Electronic linear focus

Movement :pan 540 degree , tilt 270 degree

Control mode:DMX, Auto, Sound, Master/Slave

Display:LCD display

N.W.:9.8KG

G.W.:11.6KG

Packing Size:48*36*36cm(1pcs/ctn)

Channel	DMX ＆#118alue	Function
1	000 - 255	X
2	000 - 255	Y
3	000-255	Dimmer(0-100%)
4	000-004	Shutter closed
	005-250	Strobe effect slow to fast
	251-255	Shutter open
5	000-004	Open(White)
	005-013	White/Color1
	014-022	Color1
	023-031	Color1/Color2
	032-040	Color2
	041-049	Color2/Color3
	050-058	Color3
	059-067	Color3/Color4
	068-076	Color4
	077-085	Color4/Color5
	086-094	Color5
	095-103	Color5/Color6
	104-112	Color6
	113-121	Color6/Color7
	122-130	Color7
	131-139	Open(White)
	140-195	Forward rainbow effect from fast to slow
	196-199	Rotation stop
	200-255	Backward rainbow effect from slow to fast
6	000-007	Open(White)
	008-028	Gobo1
	029-049	Gobo2
	050-070	Gobo3
	071-091	Gobo4
	092-112	Gobo5
	113-133	Gobo6
	134-194	Forward rainbow effect from fast to slow
	195-255	Backward rainbow effect from slow to fast
7	000-009	Stop
	010-129	Forward Gobo Rotation from fast to slow
	130-134	Stop
	135-255	Backward Gobo Rotation from slow to fast
8	000-255	Focus
9	000-007	Open(White)
	008-134	Prism
	135-255	Forward Prism Rotation from slow to fast
10	000-004	Wash Shutter closed
	005-250	Wash Strobe effect slow to fast
	251-255	Wash Shutter open
11	000-255	Red
12	000-255	Green
13	000-255	Blue
14	000-255	White
15	000-255	Amber
16	000-255	Purple

Shutter closed

Channel	DMX ＆#118alue	Function
1	000 - 255	X
2	000 - 255	X-Fine
3	000 - 255	Y
4	000-255	Y-Fine
5	000 - 255	XY SPEED
6	000-255	Dimmer(0-100%)
7	000-004
	005-250	Strobe effect slow to fast
	251-255	Shutter open
8	000-004	Open(White)
	005-013	White/Color1
	014-022	Color1
	023-031	Color1/Color2
	032-040	Color2
	041-049	Color2/Color3
	050-058	Color3
	059-067	Color3/Color4
	068-076	Color4
	077-085	Color4/Color5
	086-094	Color5
	095-103	Color5/Color6
	104-112	Color6
	113-121	Color6/Color7
	122-130	Color7
	131-139	Open(White)
	140-195	Forward rainbow effect from fast to slow
	196-199	Rotation stop
	200-255	Backward rainbow effect from slow to fast
9	000-007	Open(White)
	008-028	Gobo1
	029-049	Gobo2
	050-070	Gobo3
	071-091	Gobo4
	092-112	Gobo5
	113-133	Gobo6
	134-194	Forward rainbow effect from fast to slow
	195-255	Backward rainbow effect from slow to fast
10	000-009	Stop
	010-129	Forward Gobo Rotation from fast to slow
	130-134	Stop
	135-255	Backward Gobo Rotation from slow to fast
11	000-255	Focus
12	000-007	Open(White)
	008-134	Prism
	135-255	Forward Prism Rotation from slow to fast
13	000-255	Wash Dimmer(0-100%)
14	000-004	Wash Shutter closed
	005-250	Wash Strobe effect slow to fast
	251-255	Wash Shutter open
15	000-255	Red
16	000-255	Green
17	000-255	Blue
18	000-255	White
19	000-255	Amber
20	000-255	Purple
21	000-007	Empty
	008-047	Auto Play 1
	048-087	Auto Play 2
	088-127	Auto Play 3
	128-167	Auto Play 4
	168-207	Auto Play 5
	208-247	Auto Play 6
	248-255	Color Gobo Sound Control
22	000-007	Empty
	008-032	X/Y auto run 1
	033-058	X/Y auto run 2
	059-084	X/Y auto run 3
	085-110	X/Y auto run 4
	111-136	X/Y auto run 5
	137-162	X/Y auto run 6
	163-188	X/Y auto run 7
	189-214	X/Y auto run 8
	215-240	X/Y auto run 9
	241-255	X/Y Sound Control
23	250-255	RESET(10S)
