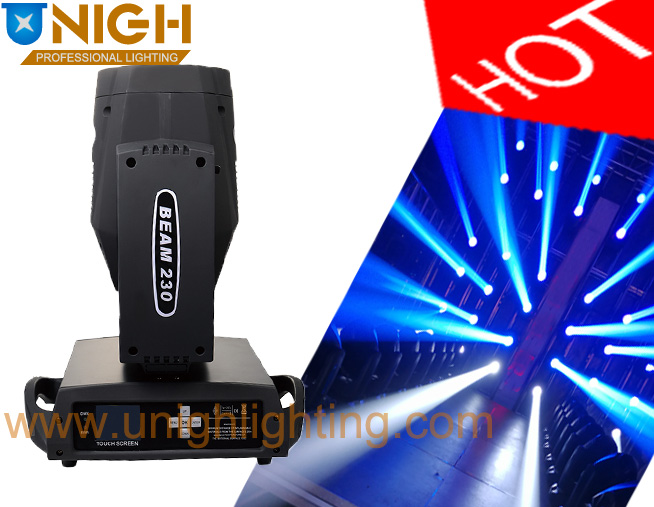

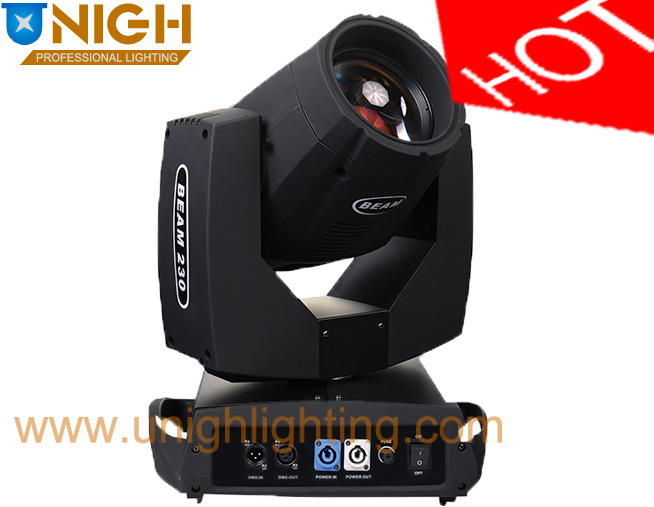

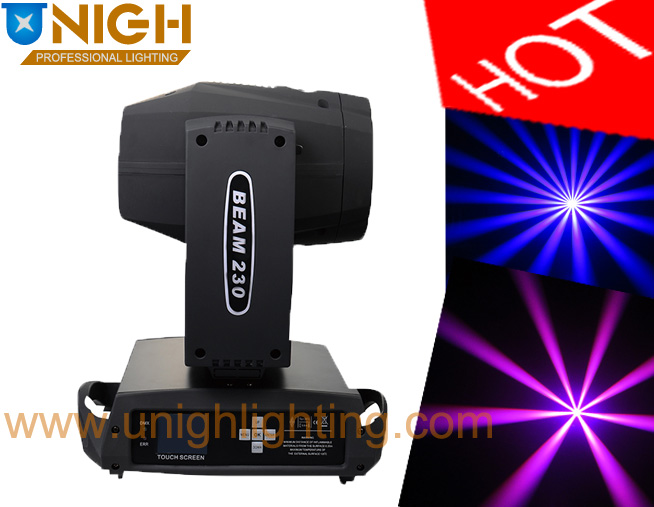

Model

UL-7R230W

Voltage

AC 90-240v, 50/60Hz

Power consumption

380w

Source

Lamp

Philips 7R 230w,Osram 7R /Yodn 7R 230W

Output Lumen

110000lm@10meters

Color temperature

8500K

Average lifespan

2000h

Mechanical

Gobo wheel

17 fixed gobos+white

Double rotation with rainbow effect

Gobo shaking function,gobo zoom

Color wheel

14 colors+white

Double rotation with rainbow effect

Prism

8 /16 facet prism with zoom

Double rotating prism

Dimmer

0-100% linear dimming

Frost lens

wash effect

Strobe rate

1-18Hz

Focus

linear adjustment

Motor

11 pcs

Fans

ADDA

Optical

Lens

High precision optics lens

Beam angle

Parrallel beam 0-3.8 degree

Movement range

Pan

540 (16 bit) electric correction

Tilt

270 (16 bit) electric correction

Control & program

Control mode

DMX 512, master slave, sound active,auto mode

Channel

18CH

Data in/out

3 pin XLR

Other functions

Lamp ON / OFF can be controlled by controller

Pre-set macros

Display

LCD screen

Packing details

Dimension

430*350*490mm

N.W.

16.5kg

Carton

450*400*510mm

19kg

CH

NAME

＆#118alue

BRIEF

CH1

COLOR

0-4

White

5-9

White + Color 1

10-14

Color 1

15-19

Color 1 + Color 2

20-24

Color 2

25-29

Color 2 + Color 3

30-34

Color 3

35-39

Color 3 + Color 4

40-44

Color 4

45-49

Color 4 + Color 5

50-54

Color 5

55-59

Color 5 + Color 6

60-64

Color 6

65-69

Color 6 + Color 7

70-74

Color 7

75-79

Color 7 + Color 8

80-84

Color 8

85-89

Color 8 + Color 9

90-94

Color 9

95-99

Color 9 + Color 10

100-104

Color 10

105-109

Color 10 + Color 11

110-114

Color 11

115-119

Color 11 + Color 12

120-124

Color 12

125-129

Color 12 + Color 13

130-134

Color 13

135-139

Color 13 + Color 14

140-144

Color 14

145-149

Color 14 + White

150-199

Rotate forward（fast – slow）

200-255

Rotate reverse（Slow -- fast）

CH2

Shutter
