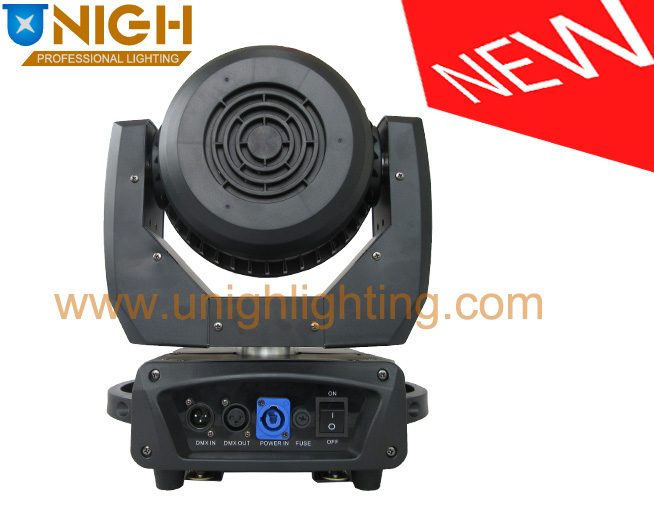

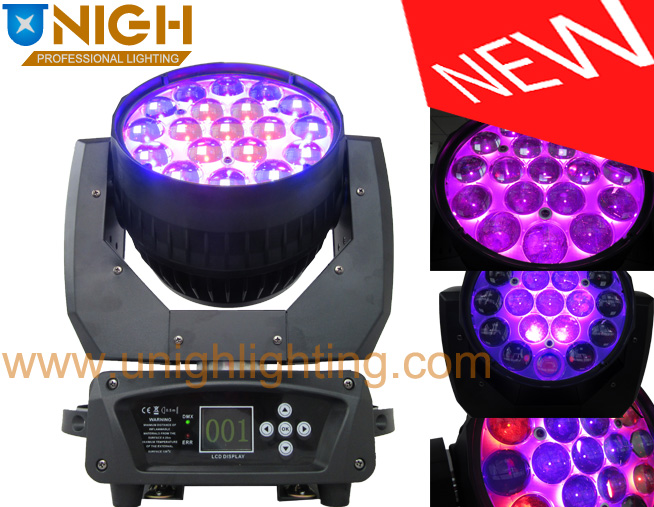

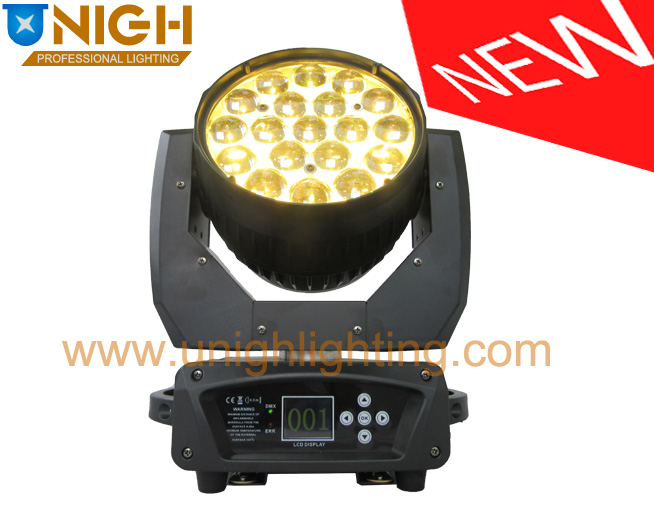

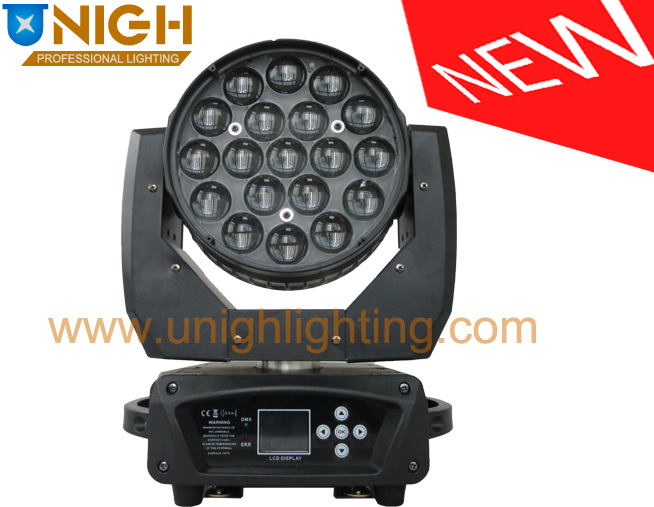

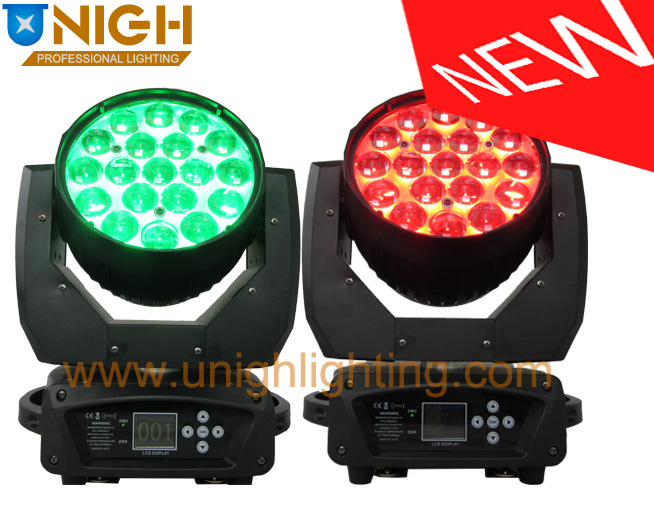

MacAura 19x15 Zoom Beam UL-LZ1915

1 With LED shutter
2 Scan Position Memory
3 Auto Repostion
4 LED rainbow effect
5 LED in circle
6 Smooth ,fast speed
7 Super low noise

Specification

DMX Channel

Video

Model No:	UL-LZ1915
Source:	19pcs 15W high brightness OSRAM RGBW 4-in-1 LEDs
ZOOM:	1 ZOOM motors
Working lifetime:	100,000 hours with low power consumption
Channel:	16/24 channels with macro effects
Control:	DMX512/Master-slave/Auto/Sound
Strobe:	1-25 times/second
PAN:	540 degree with 16bit rotate
Tilt:	270 degree with 16bit rotate
Beam angle:	8-50 degrees
Color:	RGBW infinite mixture
Dimmer:	0-100% linear dimming system
Display:	LCD blue display with Chinese and English language.
Net Weight:	7.5 Kg
Gross Weight:	9.2 Kg
Carton Package Size:	382647.5 cm
Advantages:
3-Pin XLR DMX input/output
Quiet, smooth and fast PAN/TILT movement
Low noise and efficient FAN cooling system
Built-in pre-programs with macro effects.
IEC power connector 45℃ max ambient temperature IP20 protection rating Function: With LED shutter, scan position memory and auto reposition. LED rainbow effect. LED in circle. Smooth and fast speed, super low noise. Perfectly suitable for stage, theatre, TV studio, rental, DISCO and more

CH	Function	DMX	Description

1	Pan	0-255	0-540 degree
2	Pan Fine	0-255	16 bit
3	Tilt	0-255	0-270 degree
4	Tilt Fine	0-255	16 bit
5	Pan/Tilt Speed	0-255	Speed from fast to slow
6	ZOOM	0-255
7	Macro dimming	0-255	Linear dimming from dark to bright
		0-3	No function
8	Strobe	4-95	Strobe with the same step from slow to
		4-95	fast (1HZ-25HZ)
			fast (1HZ-25HZ)
		96-176	Random Strobe
		177-255	Thunder Strobe
9	R1 dimming	0-255	Area 1 Red dimming from dark to bright
10	G1 dimming	0-255	Area 1 Green dimming from dark to bright
11	B1 dimming	0-255	Area 1 Blue dimming from dark to bright
12	W1 dimming	0-255	Area 1 White dimming from dark to bright
13	R2 dimming	0-255	Area 2 Red dimming from dark to bright
14	G2 dimming	0-255	Area 2 Green dimming from dark to bright
15	B2 dimming	0-255	Area 2 Blue dimming from dark to bright
16	W2 dimming	0-255	Area 2 White dimming from dark to bright
17	R3 dimming	0-255	Area 3 Red dimming from dark to bright
18	G3 dimming	0-255	Area 3 Green dimming from dark to bright
19	B3 dimming	0-255	Area 3 Blue dimming from dark to bright
20	W3 dimming	0-255	Area 3 White dimming from dark to bright
21	Effect show	0-255	(Built-in effect show)9 kinds of effect
22	Effect speed	0-255	From fast to slow
		0-49	CH 1 to CH 12 workable
		50-99	Effect show（Built-in effect）
23	Macro function	100-149	Auto run 1
		150-199	Auto run 2
		200-255	Sound activated
		0-99	No function
24	Reset	100-250	No function
		251-255	Reset and workable after 3 seconds

CH	Function	DMX	Description

1	Pan	0-255, &l, t;, , span, style="font-family: Arial; font-size: 9pt;">	0-540 degree

2	Pan Fine	0-255	16 bit

3	Tilt	0-255	0-270 degree

4	Tilt Fine	0-255	16 bit

5	Pan/Tilt Speed	0-255	Speed from fast to slow

6	Macro	0-255	Linear dimming from dark to bright
6	Dimming	0-255	Linear dimming from dark to bright
	Dimming

		0-3	No function

		4-95	Strobe with the same step from slow to fast
7	Strobe	4-95	（1HZ-25HZ）
7	Strobe		（1HZ-25HZ）

		96-176	Random Strobe

	, , ,	177-255	Thunder Strobe

8	R dimming	0-255	Red dimming from dark to bright

9	G dimming	0-255	Green dimming from dark to bright

10	B dimming	0-255	Blue dimming from dark to bright

11	W dimming	0-255	White dimming from dark to bright

12	ZOOM	0-255

13	Effect show	0-255	（Built-in effect show）about 10 kinds of effcet

14	Effect speed	0-255	From fast to slow

	Macro	0-49	CH 1 to CH 12 workable

	function(Please	50-99	Effect show（Built-in effect）

15	operate against	100-149	Auto run 1
	CH13 and
	CH13 and	150-199	Auto run 2
	Ch14)
	Ch14)	200-255	Sound activated

		0-99	No function

16	Reset	100-250	No function

		251-255	Reset, workable after 3 seconds
