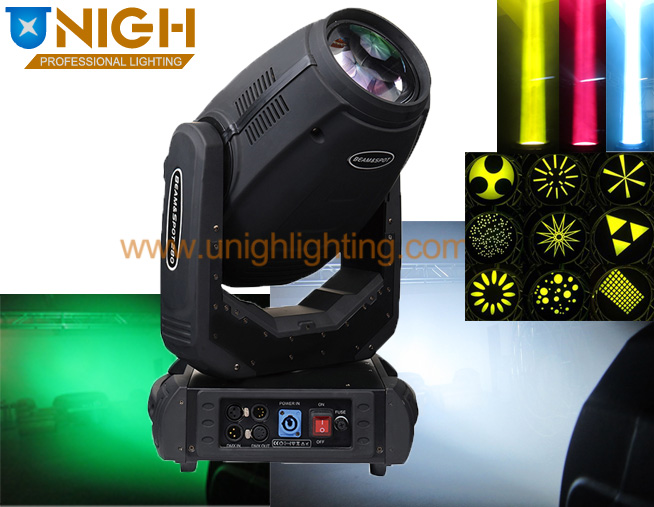

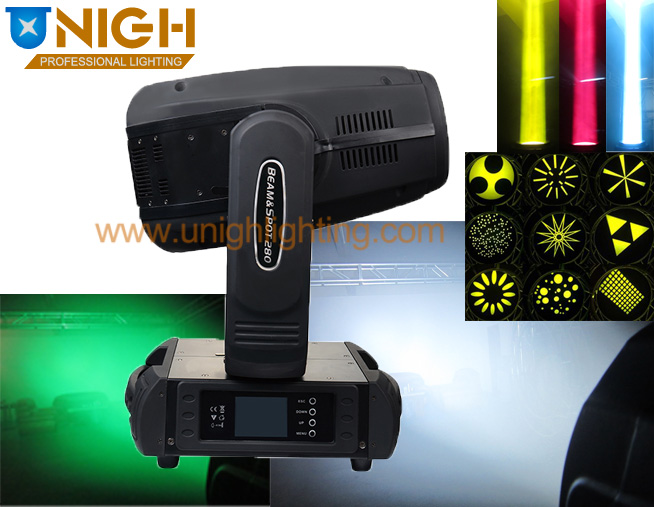

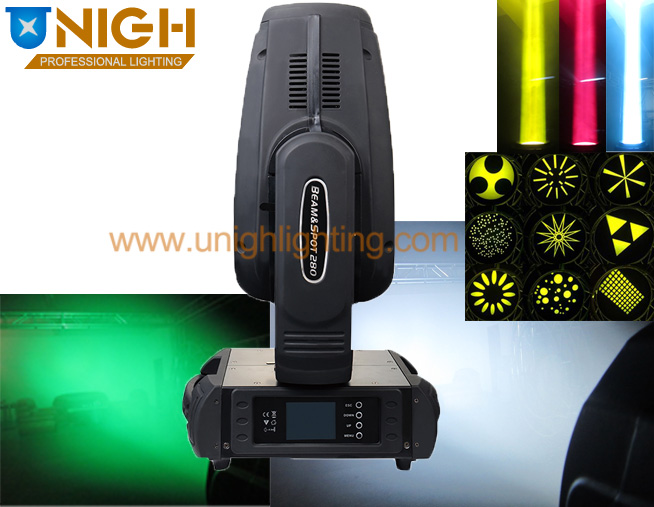

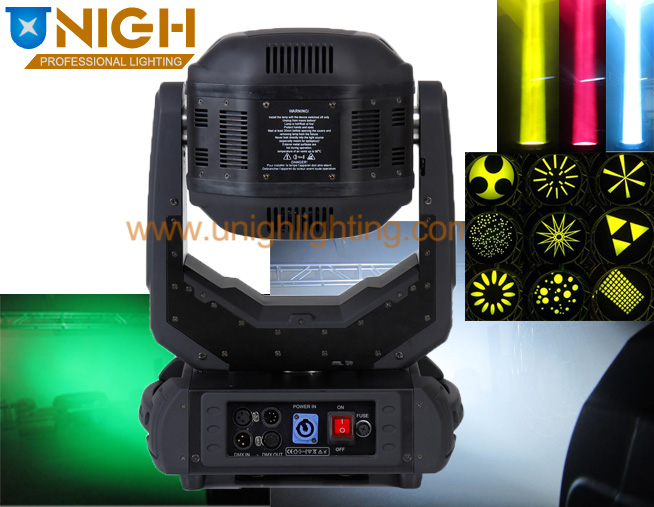

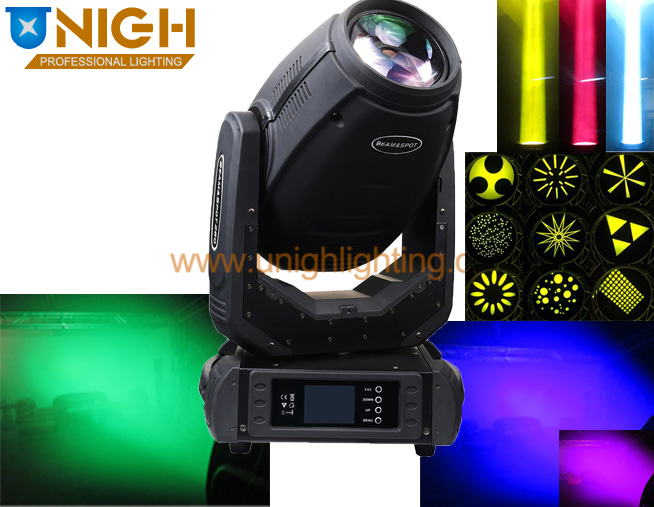

280w10R beam spot wash 3in1

beam spot wash 3in1
strong beam ,wash , spot

Specification

DMX Channel

Video

Model No	UL-10R180W
lamp	280W (Color temperature: 8000K)
Channel mode	16 / 24 DMX512 Channel
Pan scan	540°(16bit) Electric correction
Tilt scan	270° (16bit) Electric correction
Effect	Amazing dot matix, four tact switch, 180° turning show
Color wheel	one color wheel, 13 kinds of color chips in one color wheel
Static Gobo	14gobos
Rotation Gobo	9 gobos
Effect Wheel	one Rotation 6&8 face prism,one Rotation six prism effect move , frost
Dimmer	0-100% mechanical dimming, mechanical dimming and free dimming available
Strobe	strobe macro control available
Focus	Lens optical system achanical focus .beam angle3.8°-20°
Hear protection	Over heat protection
Power Dissipation	420W
IP level	:IP20
Power supply	Magnetic ballast and AC/Dc power supply
Power Input	100-240V，50/60Hz
Packing Size	523x337x570mm
Net weight	20 KG

CH NO		Name	＆#118alue	Function
1	2	Name	＆#118alue	Function
1	1	X	0~255	Pan movement by 540°
2		X fine	0~255	Fine Pan
3	2	Y	0~255	Tilt movement by 270°
4		Y fine	0~255	Fine Tilt
5	3	XY speed	0~255	Speed from max. to min. (vector mode)
6	4	power/macro	0~129 empty
			130~139	Lamp On,reset(total reset except pan/tilt reset)
			140~149	Pan/Tilt reset
			150~189	Effect motor reset
			200~209	Total reset
			210~229	empty
			230~239	Lamp Off
			240~255	empty
7	5	color
			0~8	Open/white （100%~10%）
			9~17	color 1（100%~10%）
			18~26	color2（100%~10%）
			27~36	Color 3（100%~10%）
			37~45	Color 4（100%~10%）
			46~54	Color 5（100%~10%）
			55~63	Color 6（100%~10%）
			64~72	Color 7（100%~10%）
			73~81	Color 8（100%~10%）
			82~90	Color 9（100%~10%）
			91~100	Color 10（100%~10%）
			101~109	Color 11（100%~10%）
			110~118	Color 12（100%~10%）
			119~127	Color 13（110%~10%）
			128~129	open/white
			130~134	Color 1
			135~138	Color 2
			139~143	Color 3
			144~147	Color 4
			148~152	Color 5
			153~157	Color 6
			158~161	Color 7
			162~166	Color 8
			167~171	Color 9
			172~176	Color 10
			177~180	Color 11
			181~185	Color 12
			186~189	Color 13
			190~215	Forwards rainbow effect from fast to slow
			216~217	open/white
			218~243	Backwards rainbow effect from slow to fast
			244~255	Auto random color selection from fast to slow
8		Colour fine	0~255	Color wheel - fine positioning
9	6	speed	0~255	Speed of Rot. Gobo selection from max. to min.
10	7	Static gobo	0~3	Open/hole
			4~9	Gobo 1
			10~15	Gobo 2
			16~21	Gobo 3
			22~27	Gobo 4
			28~33	Gobo 5
			34~39	Gobo 6
			40~45	Gobo 7
			46~51	Gobo 8
			52~57	Gobo 9
			58~63	Gobo 10
			64~69	Gobo 11
			70~75	Gobo 12
			76~81	Gobo 13
			82~87	Gobo 14
			88~95	Shaking gobo 1 from slow to fast
			96~103	Shaking gobo 2 from slow to fast
			104~111	Shaking gobo 3 from slow to fast
			112~119	Shaking gobo 4 from slow to fast
			120~127	Shaking gobo 5 from slow to fast
			128~135	Shaking gobo 6 from slow to fast
			136~143	Shaking gobo 7 from slow to fast
			144~151	Shaking gobo 8 from slow to fast
			152~159	Shaking gobo 9 from slow to fast
			160~167	Shaking gobo 10 from slow to fast
			168~175	Shaking gobo 11 from slow to fast
			176~183	Shaking gobo 12 from slow to fast
			184~191	Shaking gobo 13 from slow to fast
			192~199	Shaking gobo 14 from slow to fast
			200~201	Beam
			202~221	Forwards gobo wheel rotation from fast to slow
			222~223	No rotation
			224~243	Backwards gobo wheel rotation from slow to fast
			244~255	Auto random gobo selection from fast to slow
11	8	Rotation gobo
			0~4	Open/hole
			5~7	Gobo 1
			8~10	Gobo 2
			11~13	Gobo 3
			14~16	Gobo 4
			17~19	Gobo 5
			20~22	Gobo 6
			23~25	Gobo 7
			26~28	Gobo 8
			29~31	Gobo 9
			Rotation
			32~34	Rotation gobo 1
			35~37	Rotation gobo 2
			38~40	Rotation gobo 3
			41~43	Rotation gobo 4
			44~46	Rotation gobo 5
			47~49	Rotation gobo 6
			50~52	Rotation gobo 7
			53~55	Rotation gobo 8
			56~59	Rotation gobo 9
			Shaking gobos
			60~67	Shaking gobo 1 from slow to fast
			68~75	Shaking gobo 2 from slow to fast
			76~83	Shaking gobo 3 from slow to fast
			84~91	Shaking gobo 4 from slow to fast
			92~99	Shaking gobo 5 from slow to fast
			100~107	Shaking gobo 6 from slow to fast
			108~115	Shaking gobo 7 from slow to fast
			116~123	Shaking gobo 8 from slow to fast
			124~129	Shaking gobo 9 from slow to fast
			Rotation Shaking gobos
			130~137	Rotation Shaking gobo 1 from slow to fast
			138~145	Rotation Shaking gobo 2 from slow to fast
			146~153	Rotation Shaking gobo 3 from slow to fast
			154~161	Rotation Shaking gobo 4 from slow to fast
			162~169	Rotation Shaking gobo 5 from slow to fast
			170~177	Rotation Shaking gobo 6 from slow to fast
			178~185	Rotation Shaking gobo 7 from slow to fast
			186~193	Rotation Shaking gobo 8 from slow to fast
			194~199	Rotation Shaking gobo 9 from slow to fast
			200~201	Open/hole
			202~221	Forwards gobo wheel rotation from fast to slow
			222~223	Open/hole
			224	Forwards
			225~243	Backwards gobo wheel rotation from slow to fast
			244~255	Auto random gobo selection from fast to slow
12	9	Gobo rotation	rotation pattern channel set to index location
			0~255	0~200°
			When the rotation pattern is set to the stream channel
			0	no rotation
			1~127	Forwards gobo wheel rotation from fast to slow
			128~129	no rotation
			130~255	Backwards gobo wheel rotation from slow to fast
13		--		no rotation
14	10	prism	0~19	Open position (hole)
			20~49	6-face linear rotating prism -indexing
			50~75	6-face linear rotating prism- rotation
			76~105	8-face circular rotating prism- Indexing
			106~127	8-face circular rotating prism-rotation
			Prism/gobo macros
			128~135	Macro 1
			136~143	Macro 2
			144~151	Macro 3
			152~159	Macro 4
			160~167	Macro 5
			168~175	Macro 6
			176~183	Macro 7
			184~191	Macro 8
			192~199	Macro 9
			200~207	Macro 10
			208~215	Macro 11
			216~223	Macro 12
			224~231	Macro 13
			232~239	Macro 14
			240~247	Macro 15
			248~255	Macro 16
15	11	Prism rotation	circular rotating prism- Indexing
			0~255	0~200°
			circular rotating prism-rotation
			0	No rotation
			1~127	Forwards prism rotation from fast to slow
			128~129	No rotation
			130~255	Backwards prism rotation from slow to fast
16	12	frost	0~127	Open/hole
16	12	frost	128~255	frost
17	13	zoom	0~255	Zoom from max. to min beam angle
18		Zoom fine	0~255	Fine Zoom
19	14	focus	0~255	Continuous adjustment from far to near
20		Focus fine	0~255	Fine Focus
21		空		N/A
22	15	shutter	0~31	Shutter closed
			32~63	Shutter open
			64~95	Strobe-effect from slow to fast
			96~127	open
			128~159	Opening pulse in sequences from slow to fast
			160~191	open
			192~223	Random strobe-effect from slow to fast
			224~255	open
23	16	dimmer	0~255	0~100%dimmer
24		-		N/A
