POWER SUPPLIES

115/230V 50/60 Hz

Automatic power supply switching

INPUT POWER

700VA at 230V 50Hz

LAMP SOURCE

440W discharge lamp

- Type: OSRAM SIRIUS HRI 440W

OPTICS

160mm diam. front lens

Electronic focusing for a perfectly sharp light beam along its entire length

Zoom ranging from 4° to 31° for fixed gobos sharp focusing

Zoom range from 6.7° to 50° for rotating gobos sharp focusing

BEAM mode with 2.5° aperture and “pipe” effect

COLOR SYSTEM

CMY color system based on 3 gradually fading color wheels

14 color filters on three wheels

2 CTO filters (3,200K and 2,500K) + 1 CTB filter

EFFECTS SECTION

2 gobo wheels:

- wheel with 6 HQ dichroic, indexable and interchangeable rotating gobos (＆#216; 25.9mm).

- interchangeable and variable rotating wheel with 18+1 fixed metal gobos (including 6 beam reducers).

Selectable Gobo-Shake function

Advanced Visual Effect Disc (Animation disc)

2 indexable and interchangeable rotating prisms (8-facet and linear prism)

Frost unit to soften the beam edge

High precision 0-100% dimmer

Mechanical shutter and adjustable speed strobe effect

CONTROL AND PROGRAMMING

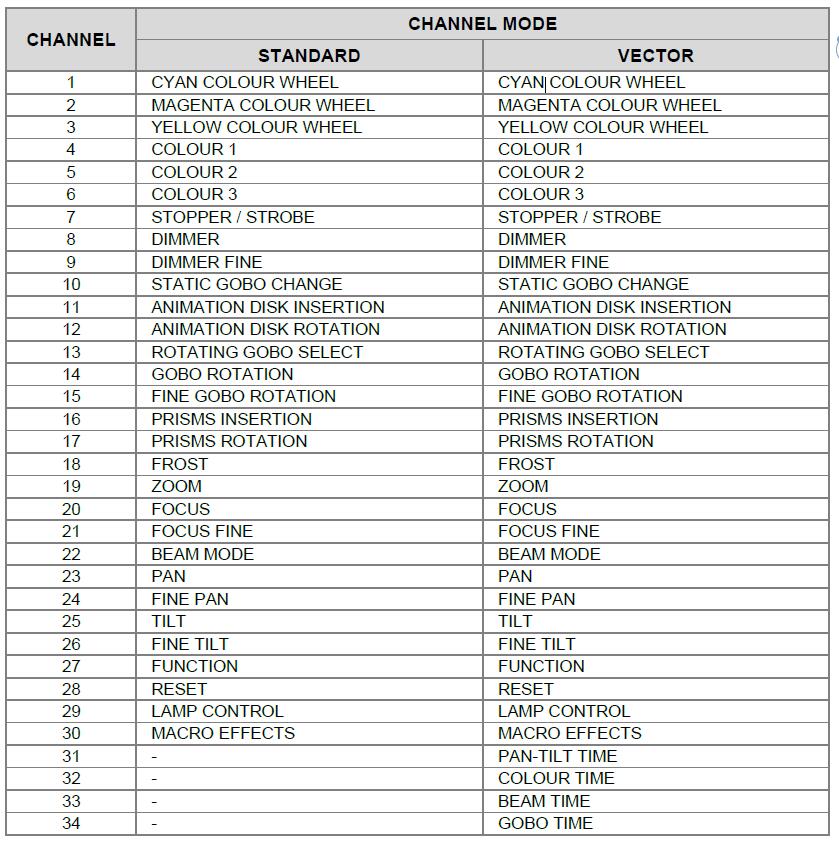

30/34 DMX 512 control channels

DMX protocol signal: USITT DMX 512

Art-Net / RDM

Display: Graphic LCD backlit b/w Display

Pan/Tilt Resolution: 16 bit

Gobo Indexing Resolution: 16 bit

Focus Resolution: 16 bit

Dimmer Resolution: 16 bit

Movement control: vectorial

DMX signal connection: 5/3 pole XLR input and output

Software upload through DMX input

BODY

Aluminium structure with die-cast plastic cover.

Two side handles for transportation.

Device locking PAN and TILT mechanisms for transportation and maintenance.

MOVING BODY

Angle:- PAN = 540° - TILT = 244°

Resolution:

- PAN = 2.11° - PAN FINE = 0.008°

- TILT = 0.960° - TILT FINE = 0.004°

Automatic repositioning of PAN and TILT after accidental movement not controlled by control unit.

ELECTRONICS

Long life self-charging buffer battery.

Pre-set macros.

Function reset from control unit

"ENERGY SAVING" function: with the stop or total dimmer effect on, or with all the CMY filters full (black), consumption cut by 50%.

ON/OFF lamp control from the lighting desk.

Function reset from the lighting desk.

"AUTOTEST" function from menù

Electronic monitoring with status error

Cooling system monitoring

DMX level monitoring on all channels

Internal data transmission diagnostics

Firmware Upgrade with no power

Firmware upload from another fixture

SAFETY DEVICES

Bipolar circuit breaker with thermal protection.

Automatic break in power supply in case of overheating or failed operation of cooling system.

Forced ventilation with axial fans.

WORKING POSITION

Working in any position

Hanging system: with fast-lock omega clamps (1/4 turn) on the base

WEIGHT

31 kg (68.34 lbs)
